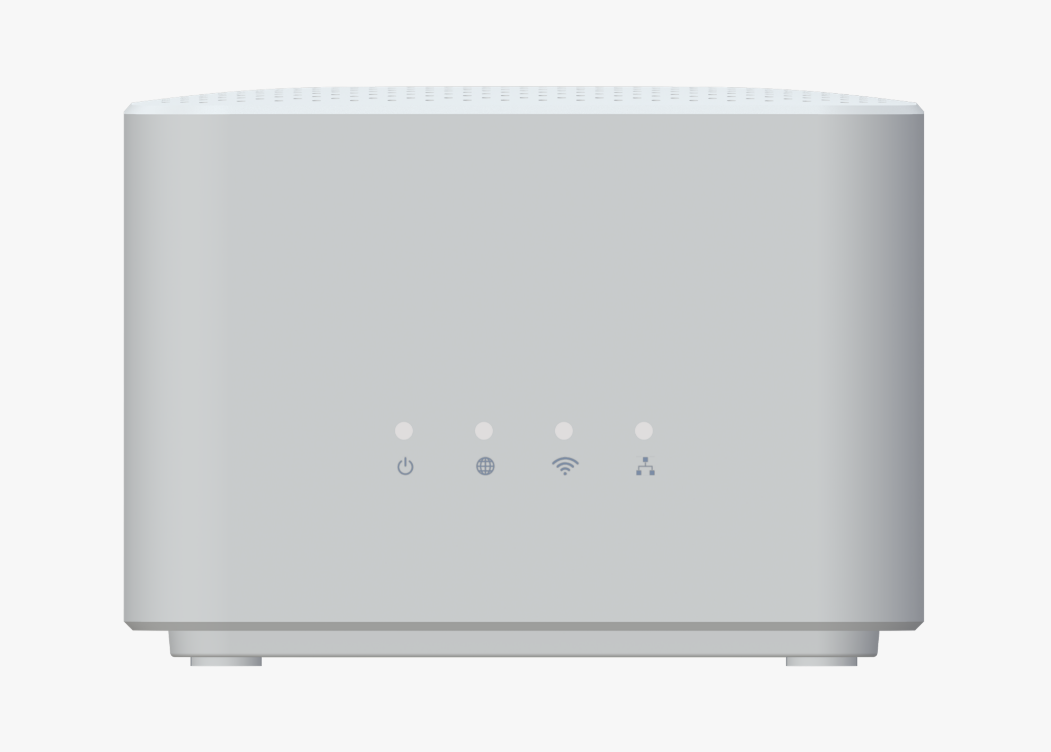

AZ797M 3GE AC1200 Mesh Router

Descriptions

AZ797M is a concurrent dual band AC1200 mesh router, which has been upgraded to the latest 802.11ac standard technology while maintaining compatibility with IEEE 802.11b/g/n and IEEE 802.11a networks. It’s a SOHO-class network security solution for family home, broadband communications and small SOHO.

Features

1x 10/100/1000BASE-T Ethernet RJ45 WAN Ports ;
2x 10/100/1000BASE-T Ethernet RJ45 LAN Ports ;
Support 802.11n 2T2R speed up to 300Mbps ;
Support 802.11ac 2T2R speed up to 867Mbps ;
Four Antennas for good coverage;

Product Parameters

Download

Specifications

AZ797M Specifications
CPU	Mips (1000MHz，single core)
Chip model	RTL8197FH-VG4 +RTL8367RB+ RTL8812FR
Memory	64Mbit(8MB)/DDR2 512Mbit（64MB）
WiFi Chip	2.4G：SOC 5G：RTL8812FR
connector	WAN: 1* 10/100/1000Mbps auto MDI/MDI-X RJ-45 ports LAN: 2* 10/100/1000Mbps auto MDI/MDI-X RJ-45 ports
Buttons	Reset
LED Indicators	Power, WAN, Wi-Fi, ETH
Wi-Fi Rate	2.4G: 802.11b/g/n@300Mbps 5G: 802.11/a/n/ac@867Mbps
Frequency Band	2.4 GHz frequency band 40MHz and 5 GHz frequency band 80MHz
Antennas	2.4G：23dBi Internal antennas 5G：23dBi Internal antennas
Power Supply	DC 12V 1A
Product Size	909065mm(length X width X height)
Work Environment	Working temperature: 0°C—40°C Working humidity: 5—95%
WAN Connection	Support DHCP, PPPoE and Static IP address three internet access models, Support WAN automatic detection, MAC Clone
wireless function	WiFi5 basic function, Guest network, Intelligent networking, Wireless Repeater， Easy mesh R2
Wireless Encryption	Open system and shared key；WPA-PSK，WPA2-PSK，WPA/WPA2-PSK；AES，
management function	WEB, Telnet/CLI
System maintenance	Device management, Configuration management, Upgrade management, Log function, Status statistics, Restart/reset
Advanced Function	Parental control, Virtual server, DDNS, VPN, IPV6, UPnP ARP、ICMP、NAT、ALG，Firewall
Certification	Meet CE certification
