AZ638 AX3000 VDSL IAD
AZ638 AX3000 VDSL IAD
AZ638 AX3000 VDSL IAD

AZ638 AX3000 VDSL IAD

Descriptions

The AZ638 is a Wi-Fi 6 Gigabit dual band wireless IAD, which is upgraded to the 802.11ax technical standard and integrates VDSL/VoIP/wireless AP. It is a security solution for home, broadband remote office and small-scale SOHO network.

Product Features:

● DSL WAN port with 50Mbps uplink / 350Mbps downlink link speed ;
● 4x 10/100/1000BASE-T Ethernet RJ45 Ports ;
● Support 802.11n/ax 2T2R speed up to 574Mbps ;
● Support 802.11n/ax 2T2R speed up to 574Mbps ;
● Support one FXS ports ;
● Support one USB2.0 port ;

Product Parameters
Download

Specifications

AZ638 Specifications
CPU 1GHz ARM CA53 dual-core 256K L2 cache
Chip model EN7562CT+MT7916AN+MT7976DN+EN7556N+EN7517BU+Le9643
Memory NAND FLASH 1Gbit(128MB)/DDR3 2Gbit（512MB）
WiFi Chip 2.4G&5G: MT7916AN+MT7976DN
DSL Driver EN7556N
DSL Protocol Specification G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2), G.992.5 (ADSL2+)

Annex A/B/I/J/M/L

ADSL physical connection ATM

AAL5

RFC 2684/1483

G.993.2 VDSL2 (Up to 35b profile)

Band plan: Annex A/B

Dual latency

UPBO/DPBO

Double-end line test (DELT)

Auto SRA

Bit Swap
Network Protocol IPv4/IPv6 Dual Stack

TCP/UDP/ICMP

HTTP/HTTPS/FTP/TFTP/TELNET/SSH

VLAN

NAT/PAT/ALG

UPnP IGD with NAT traversal capability

RIP v1/v2

DNS Proxy/Dynamic DNS

SIP/RTP

DHCP client/server/relay

IGMP and MLD snooping/proxy

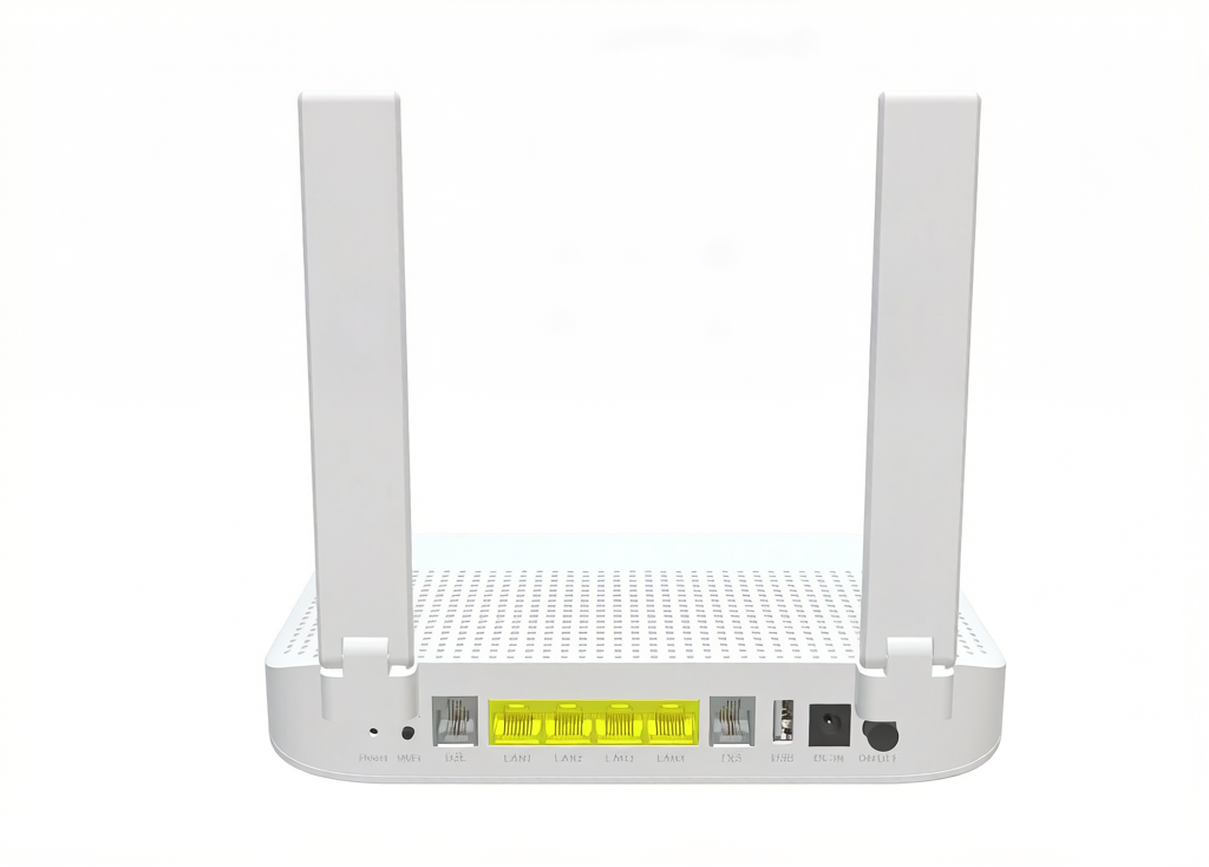

connector WAN: RJ-11 Port with 35b

LAN: 4*10/100/1000 auto MDI/MDI-X RJ-45 ports

VoIP: RJ-11 port

USB: 1*USB2.0
Buttons WPS/Reset/Wi-Fi/Power on/off

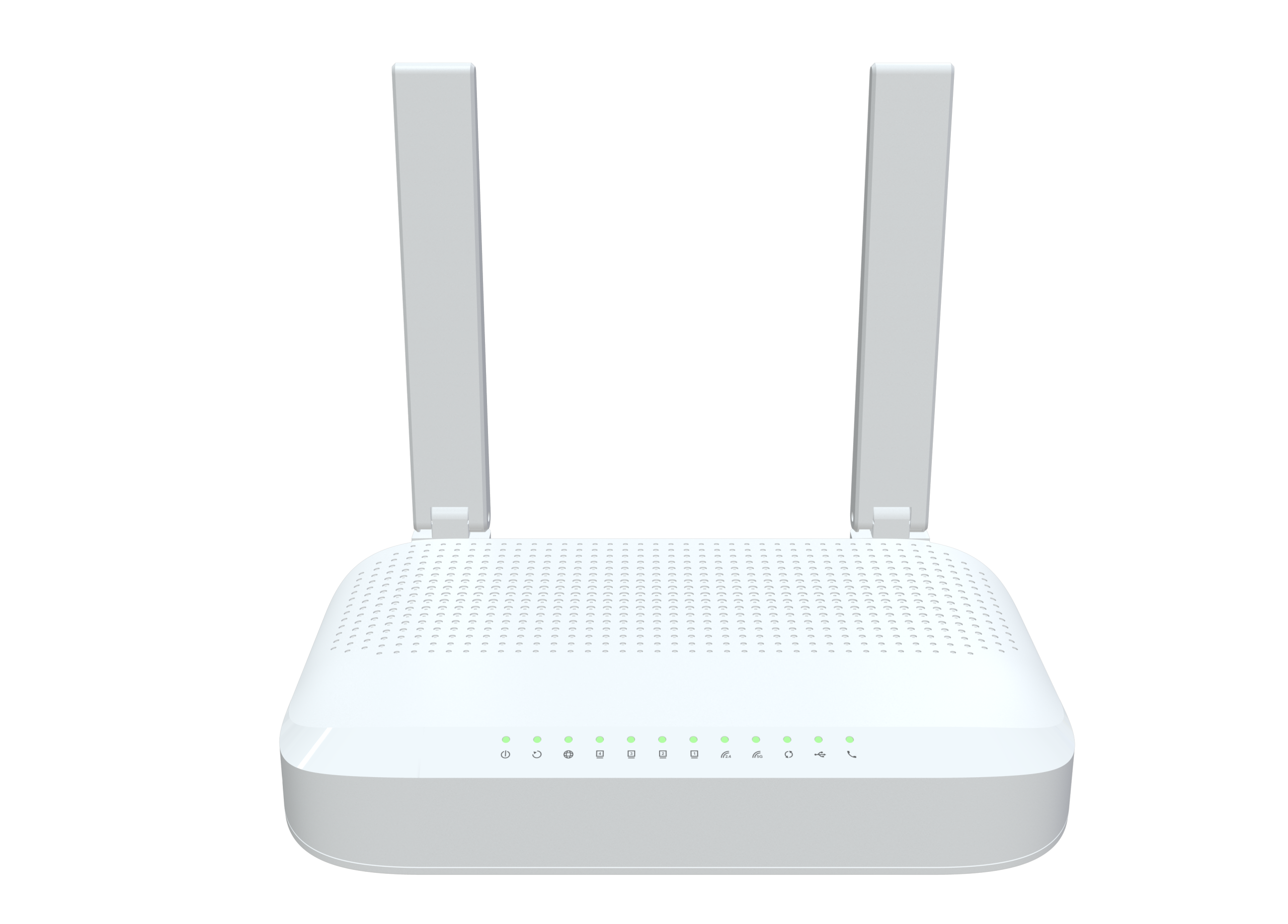

LED Indicators Power, DSL, Internet, LAN4-LAN1, 2.4GWIFI, 5GWIFI, WPS, USB, FXS
Wi-Fi Rate 2.4G: 802.11b/g/n/ax@574Mbps

5G: 802.11/a/n/ac/ax@2402Mbps
Frequency Band 2.4 GHz frequency band 40MHz and 5.8 GHz frequency band 160MHz
Antennas 2*3dBi External dual-band omni antennas

1*3dBi built-in 5G omni antenna
Power Supply DC12V 2A（Without USB 1.5A）
Surety Stateful Packet Inspection (SPI)

Denial of Service (DoS) prevention

Multiple VPN (IPSec, PPTP, L2TP) passthrough

MAC/IP/URL filtering

Black and white list

Port mapping/DMZ/Virtual server

Remote Access Control
WAN Networking Static IP WAN connection

DHCP client WAN connection

PPPoE WAN connection

3G/4G dongle

VPN client/passthrough

Router/Bridge Mode
VOIP G.711A/μ, G.729, and G.722 encoding/decoding

T.30/T.38/G.711 fax mode

DTMF /Emergency calls (with the SIP protocol)
Wireless Basic/Advanced Settings

WEP/WPA1/WPA2/WPA3/WPS

MESH

Band Steering

Multiple SSID

WMM

Channel scan

WDS

ACL list
Management TR-069 remote management

Web GUI management

Local built-in diagnostic function

Logs and statistics

Remote upgrade by HTTP

Saving/Restoring configuration to/from file

SNTP and time zone

Multi-language
Product Size 211.5X151.9X38.5mm (length x width x height)
Work Environment Working temperature: 0°C—40°C
Working humidity: 5—95%
Certification Meet CE certification
