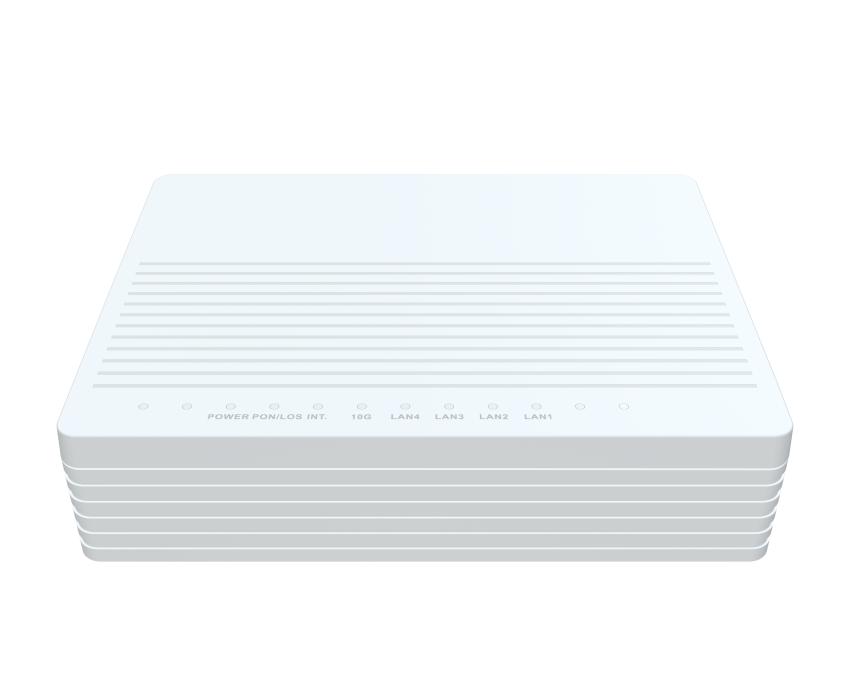

AZ547 XGSPON SFU
AZ547 XGSPON SFU
AZ547 XGSPON SFU

AZ547 XGSPON SFU

AZ547G is a 10GE XGSPON fiber modem designed to meet the FTTH ultra-broadband access requirements for home and SOHO users. It supports NAT/firewall and other functions. It is based on stable and mature GPON technology with high cost performance and Layer 2 Ethernet switching technology. It is reliable and easy to maintain, guarantees QoS, and is fully compliant with ITU-T g.9807 XGSPON standard.

Product Features:

● XGS-PON WAN port with 10Gbps uplink and 10Gbps downlink speeds;
● One 10/100/1000/2.5G/5G/10G BASE-T Ethernet RJ45 port;
● Four 10/100/1000BASE-T Ethernet RJ45 ports;

Product Parameters
Download

AZ547G Functional Parameters
CPU Dual-Core ARM Cortex-A55 at 1.0GHz
Chip model RTL9615C
Memory NAND FLASH 1Gbit(128MB)/DDR4 4Gbit(512MB)
Bob Driver GN28L98
PON Protocol Specification The XGS-PON(10G/10G)ITU-T G.9807.1 MAC supports the following features

Supports data rate of.

~10Gbps (9953 Mbps) downstream.

~10Gbps(9953Mbps) upstream. up to 256 GEM port-IDs.

Up to 40 AlloclDs.

Ranging and activation process support.

Downstream characteristics.

-Downstream AES-128 encryption and key exchange process.

-Downstream FECRS (248216).

-Dedicated independent queues for PLOAM and CPU packets.

Upstream characteristics.

-Upstream AES-128 encryption and key exchange process.

-Upstream FECRS (248216.)

-Normal queues for PLOAM and CPU.

Support ToD synchronization perITU-TG.9807.1.

Support ONU power saving operation perITU-TG.9807.1.
Network Protocol Specifications ANSI/IEEE 802.3 NWay auto-negotiation

802.1D bridging

VLAN Translation

IP ToS/DSCP to 802.1p mapping

Class of Service based on UNI, VLAN-ID, 802.1p bit, and combination

Marking/remarking of 802.1p

IGMP v2/v3 snooping and IGMP snooping with proxy report

Broadcast/Multicast rate limiting
802.1Q VLAN tagging/un-tagging

Support flexible traffic classification

Support VLAN Intelligent Bridging and Cross Connect mode
Interface WAN: 1*10G optical interface (APC)

LAN: 1*10/100/1000/2.5G/5G/10G auto MDI/MDI-X RJ-45 ports

LAN: 4*10/100/1000M auto MDI/MDI-X RJ-45 ports
LED Indicators Power, PON/ LOS, INTERNET, 10G LAN, LAN4-LAN1
Power Supply DC12V 1.0A
Security Firewall, Dos Protection
WAN Networking Static IP WAN connection

DHCP client WAN connection

PPPoE WAN connection
Management Standard OMCI (G.988)

Web GUI (HTTP/HTTPS)

Firmware upgrade via FTP/TFTP/HTTP

Telnet, Web, SSH

CLI command via telnet/console

Two-level administration privilege for web configuration

Configuration backup/restore

TR069
Product Size 150X115X36mm(length X width X height)
Work Environment Working temperature: 0°C-40°C
Working humidity: 5-95%



AZ547G XGS-PON SFU Datasheets-20241224
