AZ639 VDSL IAD
AZ639 VDSL IAD
AZ639 VDSL IAD

AZ639 VDSL IAD

Descriptions

      The AZ639 integrates VDSL + VoIP. It is a security solution for home, broadband remote office and small-scale SOHO network.

Features

  • DSL WAN port with 60Mbps uplink / 350Mbps downlink link speed ;
  • 1x 10/100/1000BASE-T Ethernet RJ45 Port ;
  • Support one FXS port ;

Product Parameters
Download

Specifications

AZ639 Specifications
CPU 900MHz Mips 1004Kc with dual-core
Chip model EN7516GT+EN7556N+Le9643
Memory SPI NAND FLASH 1Gbit (128MB)/DDR3 2Gbit（256MB）
DSL Driver EN7556N
DSL Protocol Specification G.992.1（G.dmt）、G.992.2（G.lite）、G.992.3（ADSL2）、G.992.5（ADSL2+）

Annex A/B/I/J/M/L

ADSL physical connection ATM

AAL5

RFC 2684/1483

G.993.2 VDSL2 (Up to 35b profile)

Band plan: Annex A/B

Dual latency

UPBO/DPBO

Double-end line test (DELT)

Auto SRA

Bit Swap
Network Protocol IPv4/IPv6 Dual Stack

TCP/UDP/ICMP

HTTP/HTTPS/TFTP/TELNET/SSH

VLAN

NAT/PAT/ALG

UPnP IGD with NAT traversal capability

RIP v1/v2

DNS Proxy/Dynamic DNS

SIP/RTP

DHCP client/server/relay

IGMP and MLD snooping/proxy

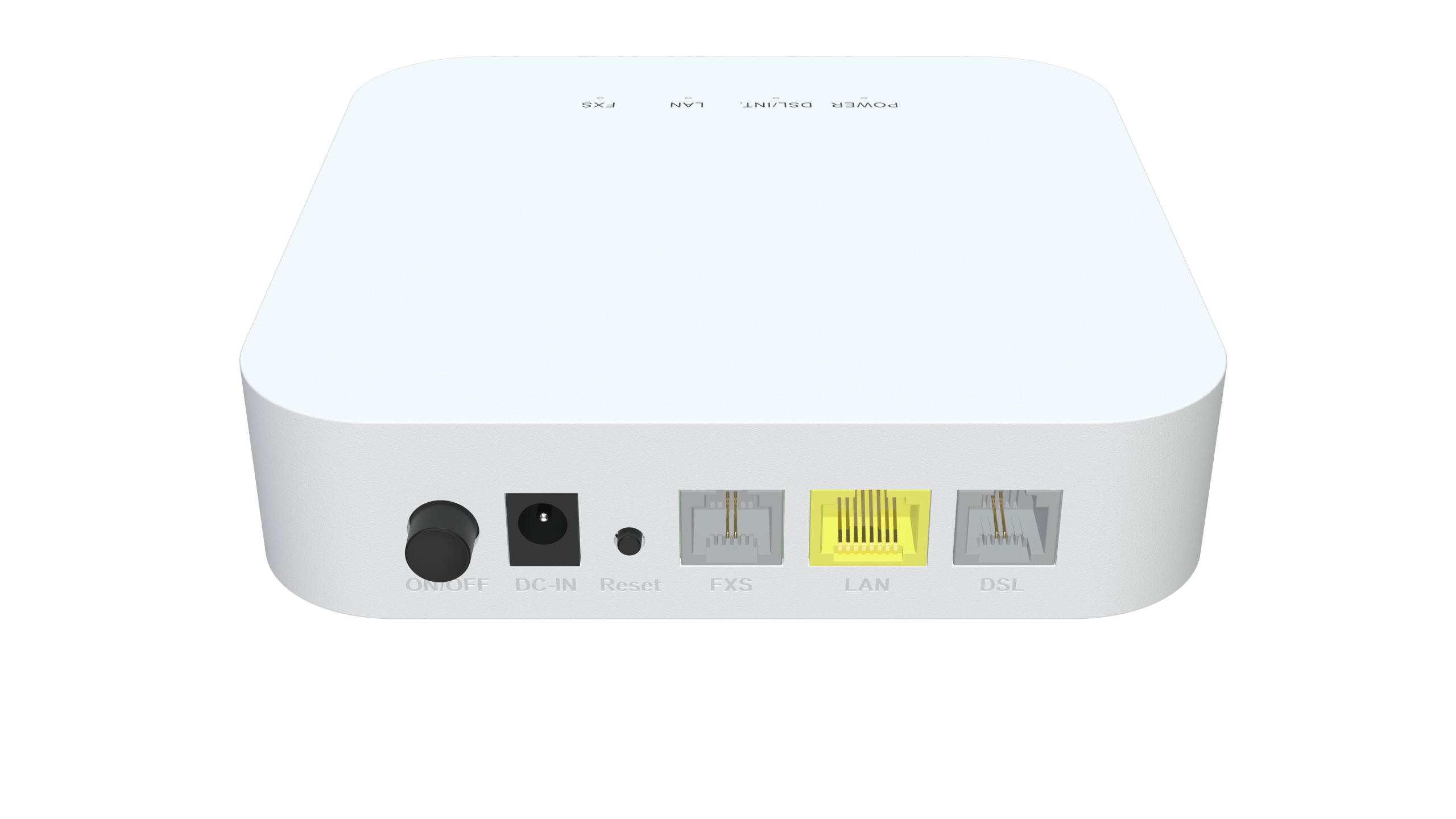

connector DSL: RJ-11 Port with 35b

LAN: 1*10/100/1000 auto MDI/MDI-X RJ-45 ports

VoIP: 1*RJ-11 port
Buttons Reset, Power on/off

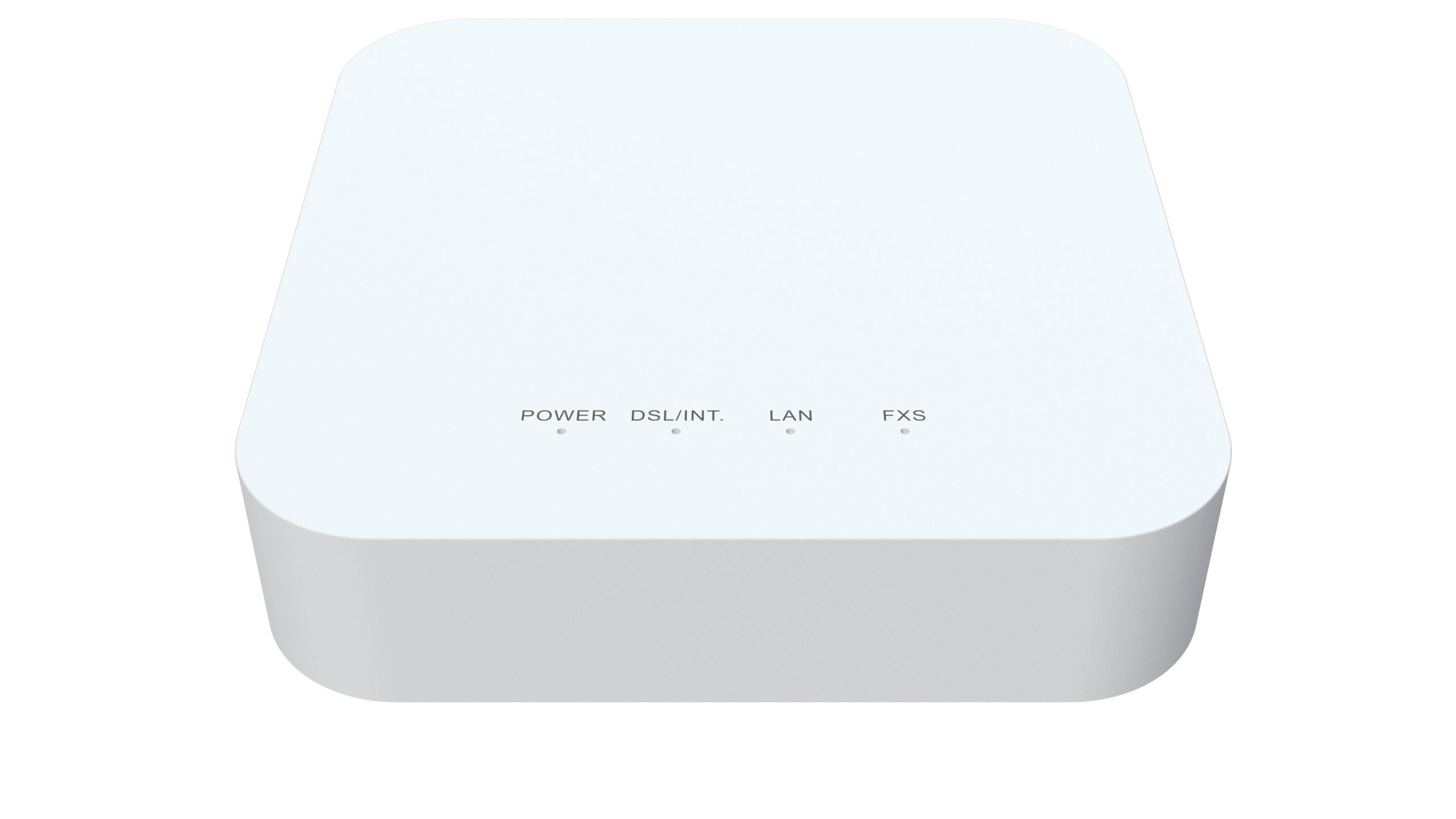

LED Indicators Power, DSL/ Internet, LAN, FXS
Power Supply DC12V 1A
Surety Stateful Packet Inspection (SPI)

Denial of Service (DoS) prevention

Multiple VPN (IPSec, PPTP,L2TP) passthrough

MAC/IP/URL filtering

Black and white list

Port mapping/DMZ/Virtual server

Remote Access Control
WAN Networking Static IP WAN connection

DHCP client WAN connection

PPPoE WAN connection

VPN client/passthrough

Router/Bridge Mode
VOIP G.711A/μ, G.729, and G.722 encoding/decoding

T.30/T.38/G.711 fax mode

DTMF /Emergency calls (with the SIP protocol)
Wireless Basic/Advanced Settings

WEP/WPA1/WPA2/WPS

MESH

Band Steering

Multiple SSID

WMM

Channel scan

WDS

ACL list
Management TR-069 remote management

Web GUI management

Local built-in diagnostic function

Logs and statistics

Remote upgrade by HTTP

Saving/Restoring configuration to/from file

SNTP and time zone

Multi-language
Product Size 130X130X36.5mm (length x width x height)
Work Environment Working temperature: 0°C—40°C
Working humidity: 5—95%
Certification Meet CE certification





AZ639 VDSL+FXS IAD Datasheets-20251215 AZ639 VDSL+FXS IAD 规格书-20251215
