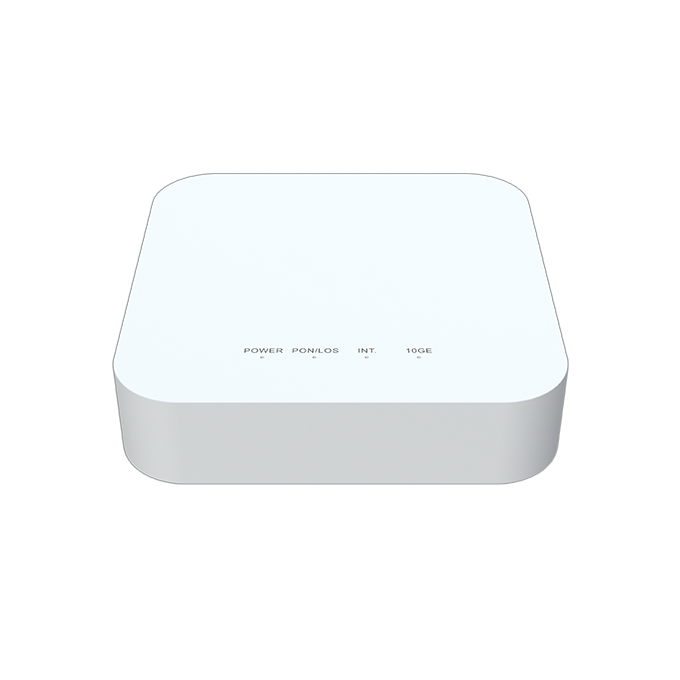

AZ549G 10GE XGS-PON SFU
AZ549G 10GE XGS-PON SFU
AZ549G 10GE XGS-PON SFU

AZ549G 10GE XGS-PON SFU

Descriptions

The AZ549G is a 10GE XGSPON fiber optic modem, which is designed to meet the FTTH ultra-wide band access requirements of home and SOHO users. It supports NAT / firewall and other functions. It is based on stable and mature GPON technology with high cost-performance and layer 2 Ethernet switch technology. It is reliable and easy to maintain, guarantees QoS, and fully conforms to ITU-T g.9807 XGSPON standard.

Features

  • XGS-PON WAN port with 10Gbps uplink / 10Gbps downlink link speed;
  • 1x 10/100/1000/2.5G/5G/10G BASE-T Ethernet RJ45 Ports;

Product Parameters
Download

Specifications



AZ549G Specifications

CPU Dual-Core ARM Cortex-A55 at 1.0GHz
Chip model RTL9615C-CG+ RTL8261BE-VB+ GN28L98
Memory NAND FLASH 1Gbit(128MB)/DDR4 4Gbit(512MB)
Bob Driver GN28L98
PON Protocol Specification The XGS-PON(10G/10G)ITU-T G.9807.1 MAC supports the following features

Supports data rate of:

~10Gbps(9953 Mbps)downstream.

~10Gbps(9953Mbps) upstream.

Up to 256 GEM port-IDs.

Up to 40 AlloclDs.

Ranging and activation process support.

Downstream characteristics:

  • Downstream AES-128 encryption and key exchange process.
  • Downstream FECRS(248216).
  • Dedicated independent queues for PLOAM and CPU packets.

Upstream characteristics:

  • Upstream AES-128 encryption and key exchange process.
  • Upstream FECRS(248216.)
  • Normal queues for PLOAM and CPU.

Support ToD synchronization perITU-TG.9807.1.

Support ONU power saving operation perITU-TG.9807.1.

Network Protocol Specifications ANSI/IEEE 802.3 NWay auto-negotiation

802.1D bridging

VLAN Translation

IP ToS/DSCP to 802.1p mapping

Class of Service based on UNI, VLAN-ID, 802.1p bit, and combination

Marking/remarking of 802.1p

IGMP v2/v3 snooping and IGMP snooping with proxy report

Broadcast/Multicast rate limiting



802.1Q VLAN tagging/un-tagging

Support flexible traffic classification

Support VLAN Intelligent Bridging and Cross Connect mode

connector WAN: 1*10G optical interface (APC)

LAN: 1*10/100/1000/2.5G/5G/10G auto MDI/MDI-X RJ-45 ports

LED Indicators Power, PON, LOS, INTERNET, 10G LAN
Buttons Reset
Power Supply DC12V 1.0A
Surety Firewall, Dos Protection
WAN Networking Static IP WAN connection

DHCP client WAN connection

PPPoE WAN connection

Management Standard OMCI (G.988)

Web GUI (HTTP/HTTPS)

Firmware upgrade via FTP/TFTP/HTTP

Telnet, Web, SSH

Two-level administration privilege for web configuration

Configuration backup/restore

Configuration backup/restore

TR069

Product Size 130 X 130 X 36.5mm(length X width X height)
Work Environment Working temperature: -0°C—40°C
Working humidity: 5—95%
Certification Meet CE certification
