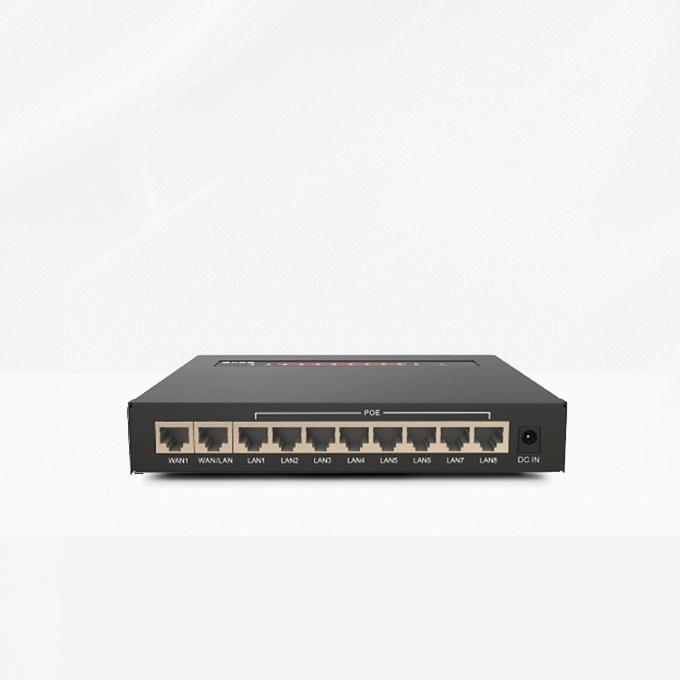

AC757 10 GE POE Route

The AC757 is a gateway device designed for wireless networks in indoor and outdoor public places, enabling integrated management of wireless APs. It supports Gigabit Ethernet port and POE power supply, eliminating the need to deploy additional power supply lines and greatly simplifying wireless deployment. Meet the needs of small-scale networks in homes and industries.

Model No:. AC757
Chipset. MTK7621A
Device interfaces. 2x GE WAN +8x GE LAN (POE OUT), 1x Reset / 1x DC Interface
Memory : 128MB Flash+256MB DDR
Access Controller. 128 AP
POE Output . One Port = 30W/Total = 96W
Specification. 180X120X30 mm

Product Parameters

Download

Functional parameters

Model name	AC757
Chipset	MTK7621A
Device Interface	2x GE WAN +8x GE LAN (POE OUT),
Device Interface	1x Reset / 1x DC Interface
Memory (RAM)	128MB Flash+256MB DDR
Access Controller	128 AP
POE Output	One Port = 30W/Total = 96W
Size	180X120X30 mm
Adapter (device)	DC 52V/2A
protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, H.323, SIP, DDNS, IGMPv1/v2/v3, IGMP snooping
WAN	Dynamic IP, Static IP, PPPoE, Bridging
Surety	Filtering Based on ACL/MAC/URL
Management	WEB/TELNET
Operating Environment	Operating Temperature: 0℃～40℃, Operating Humidity: 10%～90%RH Non-condensing
Storage Environment	Storage Temperature: -40 ~ +70°C Storage Humidity: 5 ~ 95% Non-condensing
