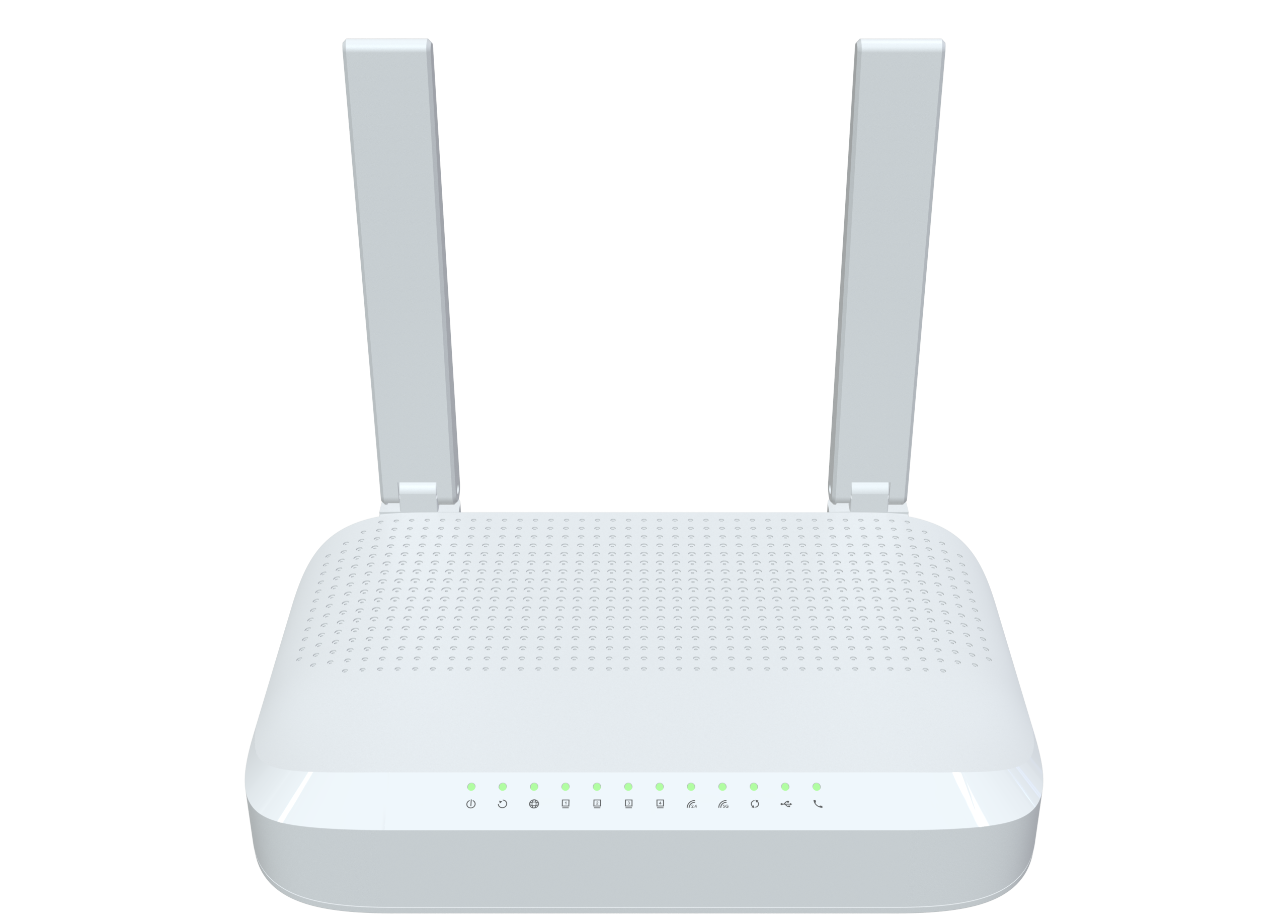

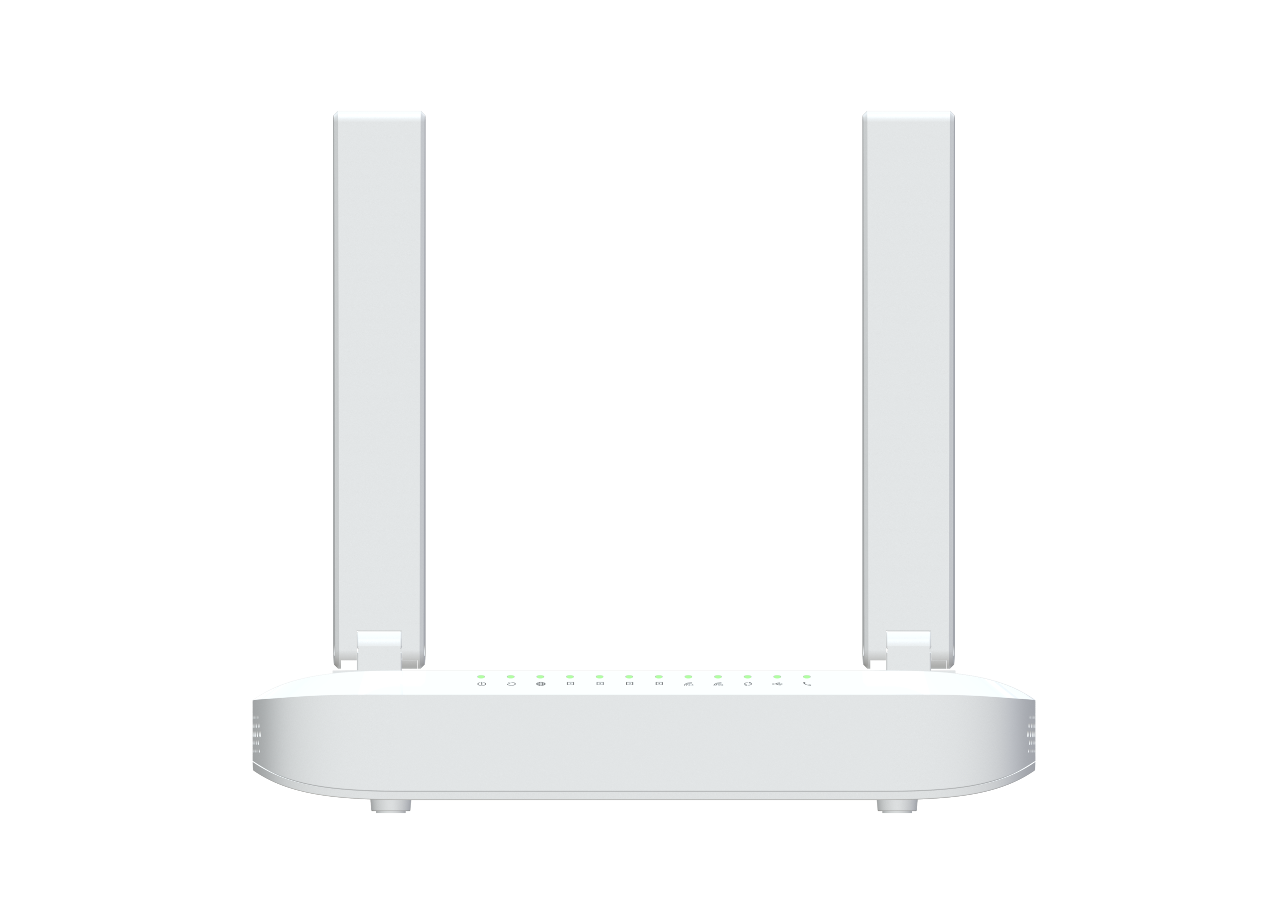

AZ546G-S 4GE AX3000 GPON HGU

Descriptions

AZ546G-S GPON ONT is a new terminal level GPON ONT, which is a variety of FTTB \ FTTH \ FTTO access ONT manufactured and supplied by AZROAD for carrier-grade FTTH network applications. It can support pure data, WIFI and many other services accessing type. AZ546G-S ONT supports standard OMCI, which provides up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. AZ546G-S supports 802.11ax dual band Wi-Fi speed up to 2.4Gbps.

Features

GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlink link speed;
4x 10/100/1000BASE-T Ethernet RJ45 Ports;
Support 802.11n/ax 2T2R speed up to 574Mbps;
Support 802.11ac/ax 2T3R speed up to 2400Mbps;
Support Voip;
Support USB2.0

Product Parameters

Download

Specifications

AZ546G-S Specifications
CPU	1.0GHz ARM CA53 dual-core CPU,256K L2 cache
Chip model	EN7529CU+MT7916AN+MT7976DN+EN7571N+Le9643
Memory	NAND FLASH 1Gbit(128MB)/ Integrate 512MB DDR3 SDRAM
WiFi Chip	2.4G&5G: MT7916AN+MT7976DN
Bob Driver	EN7571N
GPON Protocol Specification	Comply ITU-T G.984 GPON standard: G.984.1 general characteristics G.984.2 physical Media Dependent (PMD) layer specifications G.984.3 transmission convergence layer specifications G.984.4 ONT management and control interface specification Support DS/US transmission rate to 2.488 Gbps/1.244 Gbps Wavelength: 1490 nm downstream & 1310 nm upstream Comply with class B+ type PMD Physical distance reach to 20 km Support Dynamic Bandwidth Allocation (DBA) GPON Encapsulation Method (GEM) supports Ethernet packet Supports GEM header removal/insertion and data extraction/segmentation (GEM SAR) Configurable AES DS and FEC DS/US Support up to 8 T-CONs each with priority queues (US)
Network Protocol Specifications	802.3 10/100/1000 Base T Ethernet ANSI/IEEE 802.3 NWay auto-negotiation 802.1Q VLAN tagging/un-tagging Support flexible traffic classification Support VLAN staking Support VLAN Intelligent Bridging and Cross Connect mode

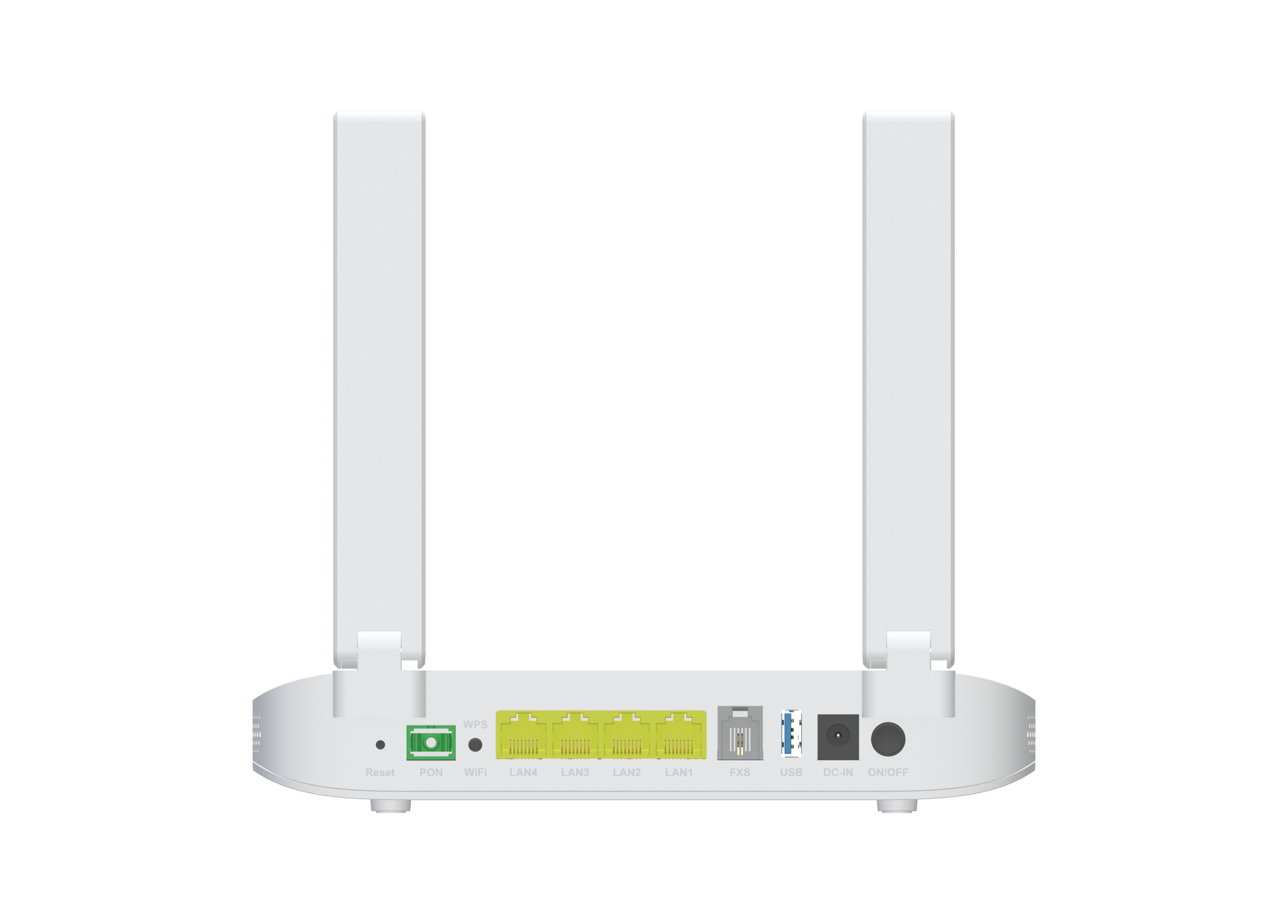

connector	WAN: One Giga optical interface (APC or UPC) LAN: 410/100/1000 auto MDI/MDI-X RJ-45 ports VoIP: 1RJ-11 port USB: 1* USB2.0
LED Indicators	Power, PON/LOS, INT, LAN4-1, 2.4G WLAN, 5G WLAN, WPS, USB, TEL
Wi-Fi Rate	2.4G: 802.11n/ax with 574Mbps 5G: 802.11ac/ax with 2400Mbps
Frequency Band	2.4 GHz frequency band 40MHz and 5.8 GHz frequency band 160MHz
Buttons	WPS/WLAN/Reset
Antennas	15G 5dBi Internal antennas 22.4G&5G 4dBi External antennas
Power Supply	DC12V 1.5A
Product Size	211.5X151.9X38.5 mm(length X width X height)
Work Environment	Working temperature: 0°C—40°C Working humidity: 5—95%
Surety	WPA/WPA2/WPA3, 64/128bit WEP data encryption Firewall, Dos Protection, ssl connection
WAN Networking	Static IP WAN connection DHCP client WAN connection PPPoE WAN connection
VOIP	G.711A/μ, G.729, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF /Emergency calls (with the SIP protocol)
Management	Standard OMCI (G.984.4) Web GUI (HTTP/HTTPS) Firmware upgrade via TFTP/HTTP/TR069/OMCI Telnet, Web, SSH CLI command via telnet/console Configuration backup/restore TR069
Certification	Meet CE certification
