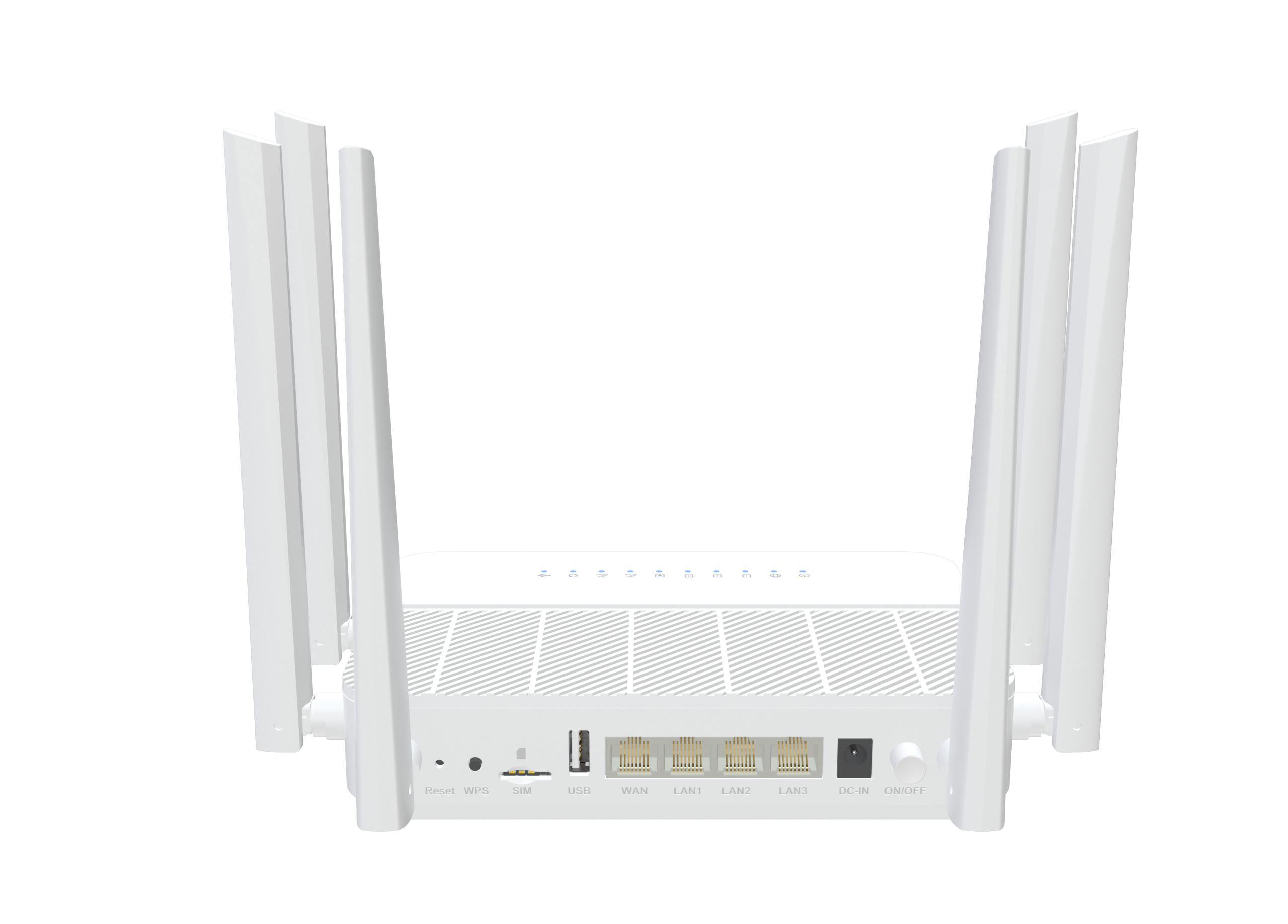

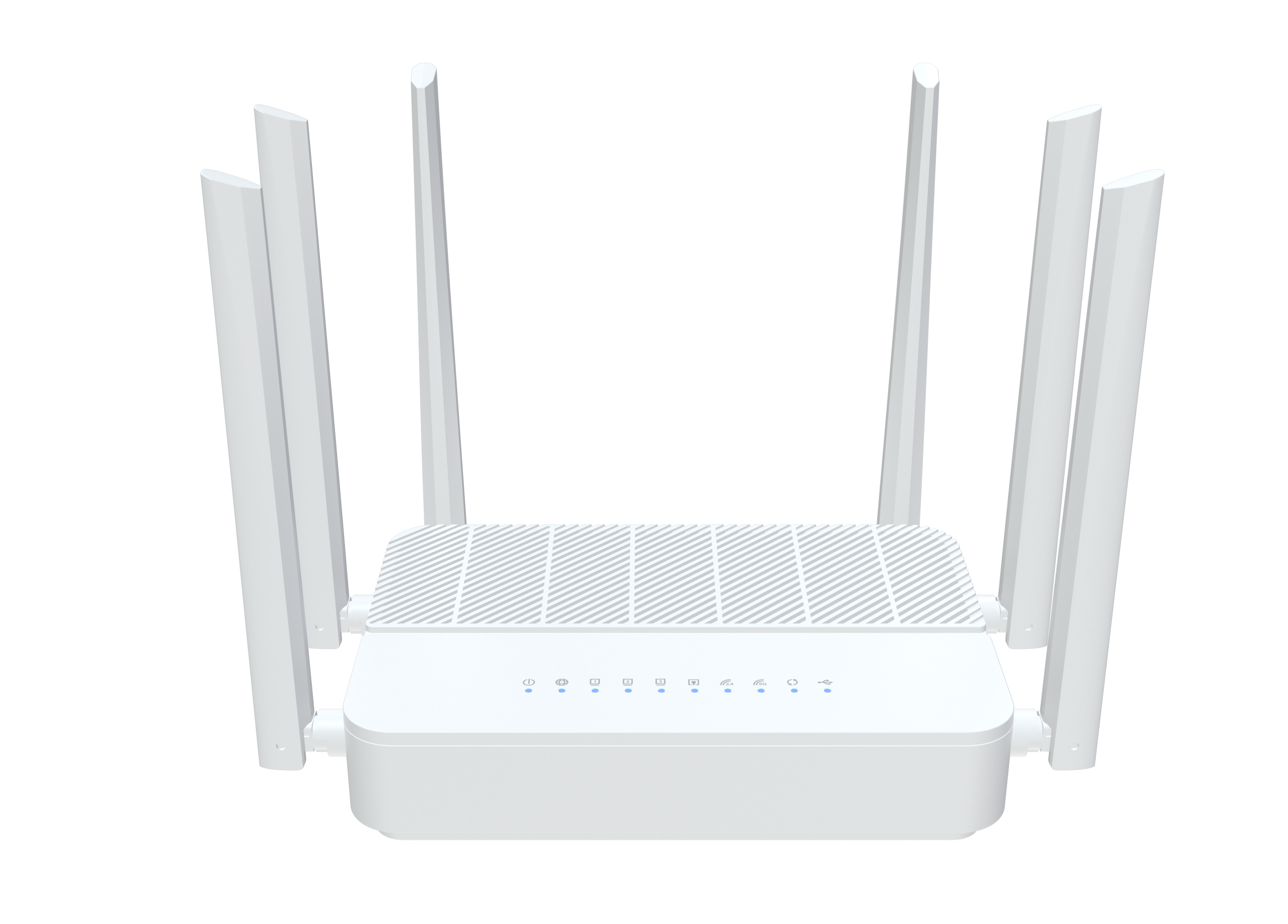

AZ848 AX3000 CAT6 4G CPE Router
AZ848 AX3000 CAT6 4G CPE Router
AZ848 AX3000 CAT6 4G CPE Router

AZ848 AX3000 CAT6 4G CPE Router

Descriptions

AZ848 is a dual band concurrent AX3000 CPE with cat6 4G modem, which has been upgraded to the latest 802.11ax standard technology while maintaining compatibility with IEEE 802.11b/g/n and IEEE 802.11a networks. It’s a SOHO-class network security solution for family home, broadband communications and small SOHO.

Features

  • 1x 10/100/1000BASE-T Ethernet RJ45 WAN Ports;
  • 3x 10/100/1000BASE-T Ethernet RJ45 LAN Ports;
  • Support 802.11ax 2T2R speed up to 574Mbps;
  • Support 802.11ax 2T3R speed up to 2402Mbps;
  • Support LTE CAT6 with uplink speed up to 50Mbps, and downlink speed up to 300Mbps;
  • Support one USB2.0 ports;

Product Parameters
Download

Specifications

AZ848 Specifications

Chip model MT7981B +MT7976CN+MT7531AE+CAT6 LTE Module (EG060WEAAA)
Memory NAND FLASH 1Gbit(128MB)/DDR4 4Gbit(512MB)
WiFi Chip 2.4G&5G: MT7976CN
Cellular Frequency LTE-FDD: B1/B3/B5/B7/B8/B20/B28

LTE-TDD: B38/B40/B41

WCDMA: B1/5/8

Wi-Fi Rate 2.4G:802.11b/g/n/ax@574Mbps

5G:802.11/a/n/ac/ax@2402Mbps

connector WAN: 1* 10/100/1000Mbps auto MDI/MDI-X RJ-45 ports

LAN: 3* 10/100/1000Mbps auto MDI/MDI-X RJ-45 ports

1*nano sim card

1*USB2.0

1*DC JACK

Frequency Band 2.4 GHz frequency band 40MHz and 5 GHz frequency band 160MHz
Antennas WIFI : 1*3dBi External dual-band omni antennas

1*5dBi External 2.4G omni antennas

2*5dBi External 5G omni antennas



LTE: 2*3dBi External omni antennas

Buttons WPS,Reset,Power on/off
LED Indicators Power, NET, LAN3, LAN2, LAN1, WAN, 2.4G, 5G, WPS, LTE
Power Supply DC 12V 2A
Product Size 180X120X42.2 mm (length X width X height)
Work Environment Working temperature: 0°C—40°C;Working humidity: 10—90%
WAN Connection Support DHCP, PPPoE and Static IP address three internet access models
wireless function WiFi basic function, WiFi advanced function, Guest network
Wireless Encryption WPA/WPA2, WPA2
management function WEB
System maintenance Device management, Configuration management, Upgrade management, Log function, Status statistics, Restart/reset
Advanced Function Firewall, Virtual server,IPV6, UPnP
Certification Meet CE certification
