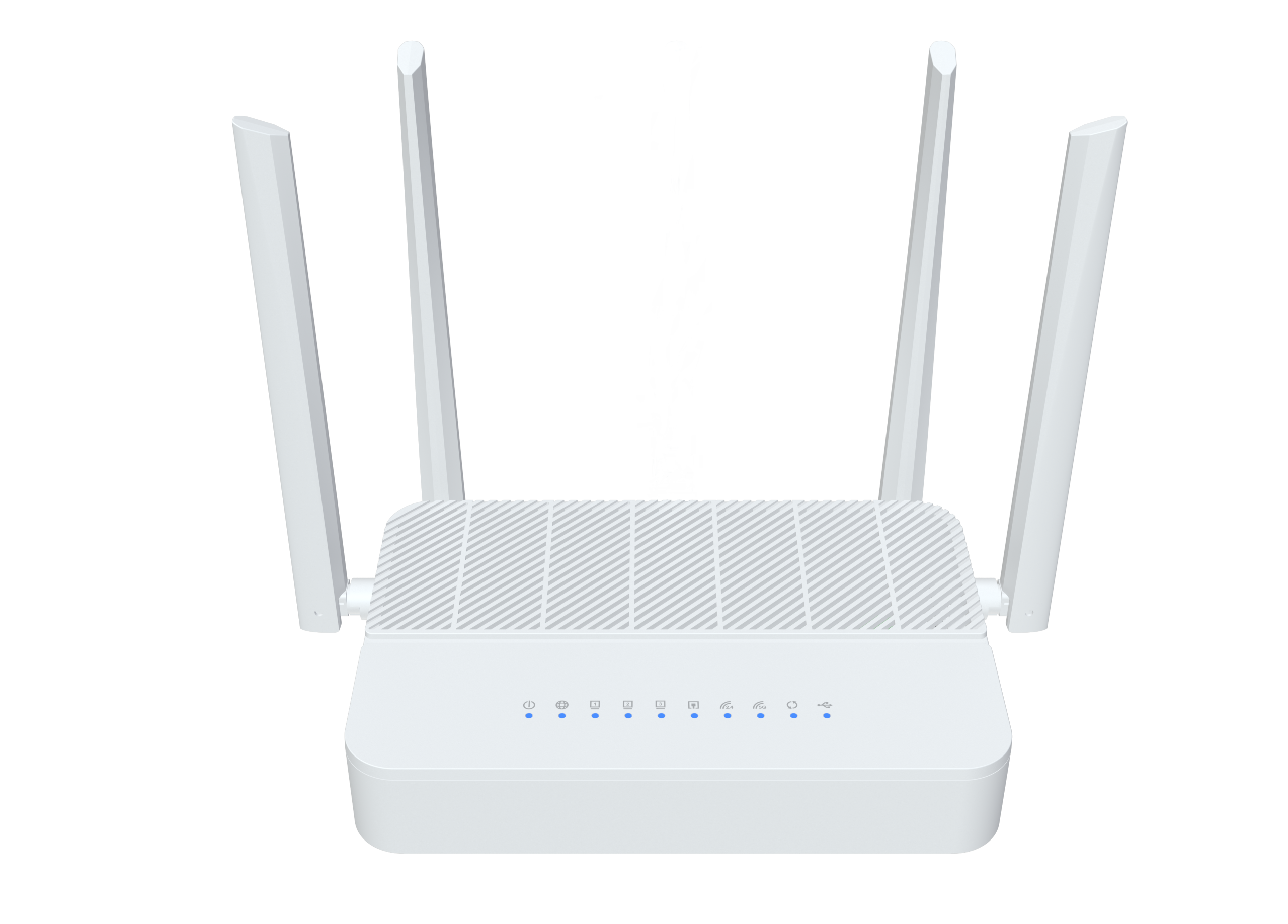

AZ7005 AX3000 Wi-Fi Router
AZ7005 AX3000 Wi-Fi Router
AZ7005 AX3000 Wi-Fi Router

AZ7005 AX3000 Wi-Fi Router

Descriptions
AZ7005 is a concurrent dual band ax3000 wireless router, which has been upgraded to the latest 802.11ax standard technology while maintaining compatibility with IEEE 802.11b/g/n and IEEE 802.11a networks. It’s a SOHO-class network security solution for family home, broadband communications and small SOHO.
Features
1x 10/100/1000BASE-T Ethernet RJ45 WAN Port;
3x 10/100/1000BASE-T Ethernet RJ45 LAN Ports;
WAN port support passive POE out for ODU(option)
Support one VOIP port;
Support 802.11ax 2T2R speed up to 574Mbps;
Support 802.11ax 2T2R speed up to 2402Mbps;
Four Antennas for good coverage;

Product Parameters
Download

Specifications

AZ7005 Specifications

CPU ARM CA53 (1GHz, Dual-core)
Chip model EN7562CT+MT7916AN+MT7976DN+Le9643
Memory NAND FLASH 1Gbit(128MB)/DDR3 4Gbit(512MB)
WiFi Chip 2.4G&5G: MT7916AN+MT7976DN

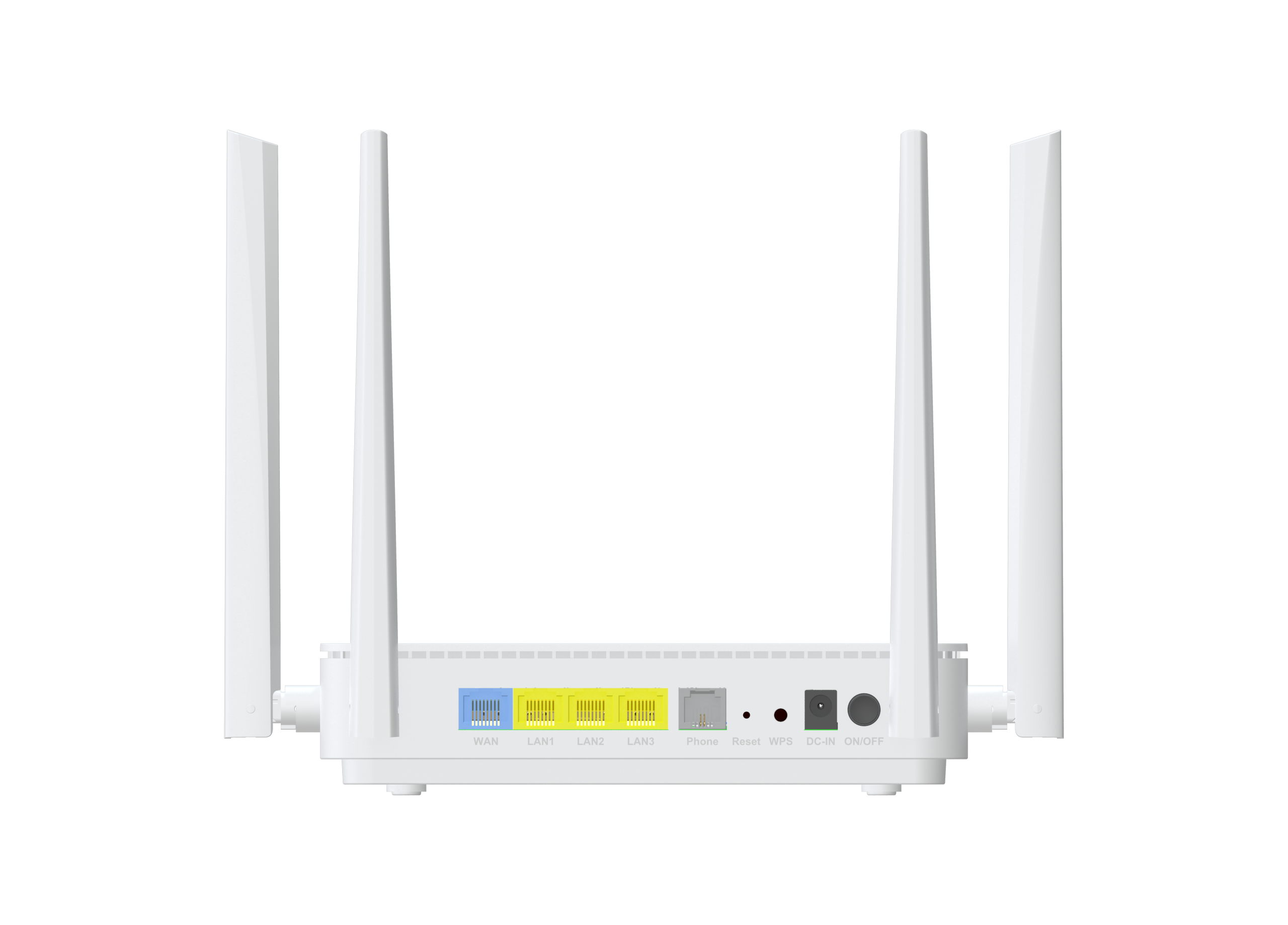

connector WAN: 1* 10/100/1000Mbps auto MDI/MDI-X RJ-45 port (passive POE out)

LAN: 3* 10/100/1000Mbps auto MDI/MDI-X RJ-45 ports

1* VoIP port

Buttons Wi-Fi/WPS, Reset
LED Indicators POWER, Internet, LAN3-LAN1, WAN,2.4G,5G, WPS, FXS
Wi-Fi Rate 2.4G:802.11b/g/n/ax@574Mbps

5G:802.11/a/an/ac/ax@2402Mbps

Frequency Band 2.4 GHz frequency band 40MHz and 5 GHz frequency band 160MHz
Antennas 2*5G 5dBi External antennas

1*2.4G 5dBi External antenna

1*2.4&5G 3dBi Dual-band External antenna

Power Supply DC 54V/1A   or   DC12V/1.5A (no support POE)
Product Size 180X120X42.2 mm (length X width X height)
Work Environment Working temperature: 0°C—40°C
Working humidity: 5—95%
WAN Connection Support DHCP, PPPoE and Static IP address three internet access models,

Support WAN automatic detection, MAC Clone

wireless function WiFi5/WiFi6 basic function, Guest network,

Intelligent networking, Wireless Repeater,

Easy mesh

Wireless Encryption wpa/wpa2, wpa2, wpa3
management function WEB, Telnet/CLI
System maintenance Device management, Configuration management, Upgrade management, Log function, Status statistics, Restart/reset
Advanced Function Parental control, Virtual server, DDNS, VPN, IPV6, UPnP
Certification Meet CE certification
