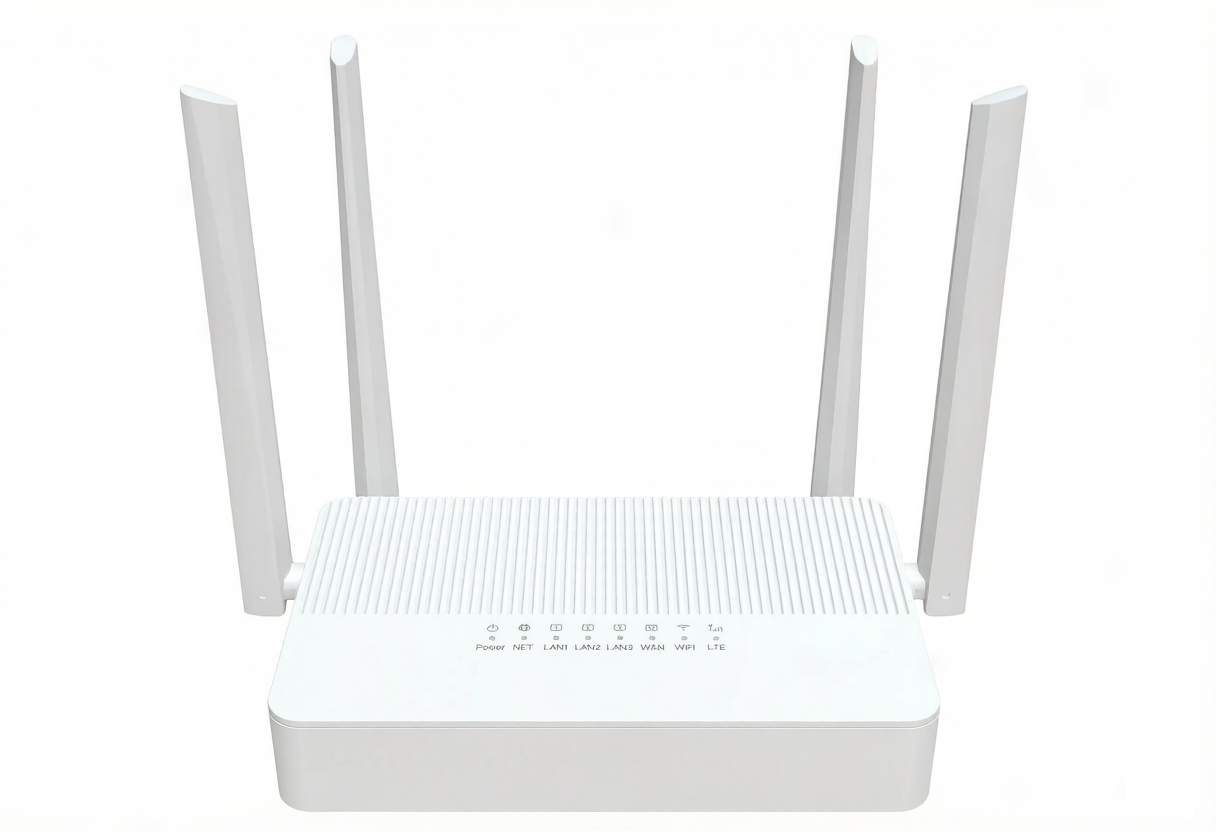

AZ846 N300 4G CPE Router
AZ846 N300 4G CPE Router
AZ846 N300 4G CPE Router
AZ846 N300 4G CPE Router

AZ846 N300 4G CPE Router

描述

AZ846 是一款 N300 宽带接入设备（CPE），内置 4G 调制解调器，可兼容 IEEE 802.11b/g/n 网络。它是一款面向家庭用户、宽带通信及小型 SOHO 场景的网络安全部署解决方案。

特性
● 1个10/100MBASE-T以太网RJ45 WAN端口；
● 3个10/100MBASE-T以太网RJ45 LAN端口；
● 支持2.4G 802.11N Wi-Fi，2T2R配置，速率最高可达300Mbps；
● 支持LTE CAT4，上行速率最高50Mbps，下行速率最高150Mbps；

产品参数
资料下载

AZ846 Specifications
Chip model MT7628NN+CAT4 LTE Moudle
Memory FLASH 16MB/DDR2 64MB
WiFi Chip Built in MT7628NN
Cellular Frequency LTE-FDD: B1/ 3/ 5/7/ 8/20/28

LTE-TDD: B38/40/41

WCDMA: B1/5/8
WiFi rate 802.11b/g/n Wireless LAN 300Mbps

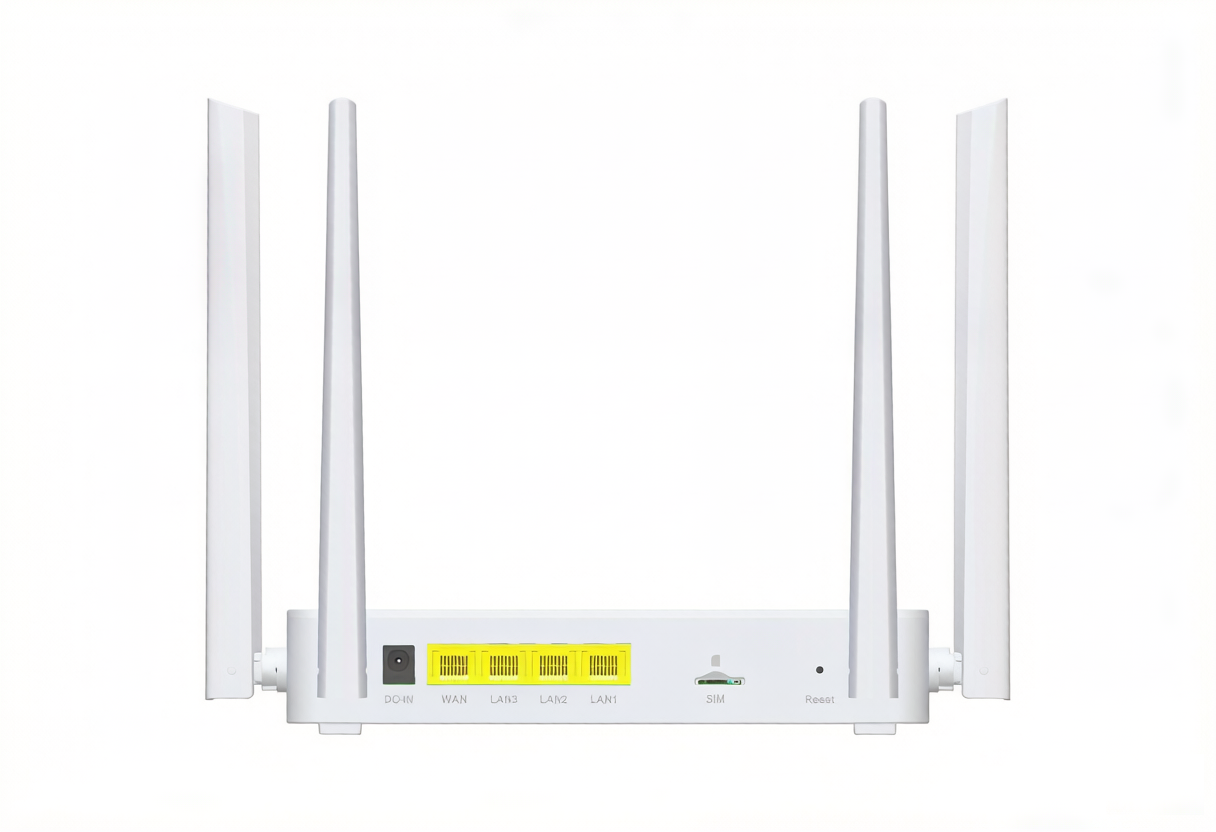

Interface LAN: 3* 10/100Mbps auto MDI/MDI-X RJ-45 ports

LAN/WAN: 1* 10/100Mbps auto MDI/MDI-X RJ-45 ports

Sim slot：1*nano sim card
Frequency Band 2.4 GHz frequency band 40MHz
Antennas WIFI 2.4G: 2*5dBi External antennas

LTE: 2*3dBi External antennas
Buttons Reset

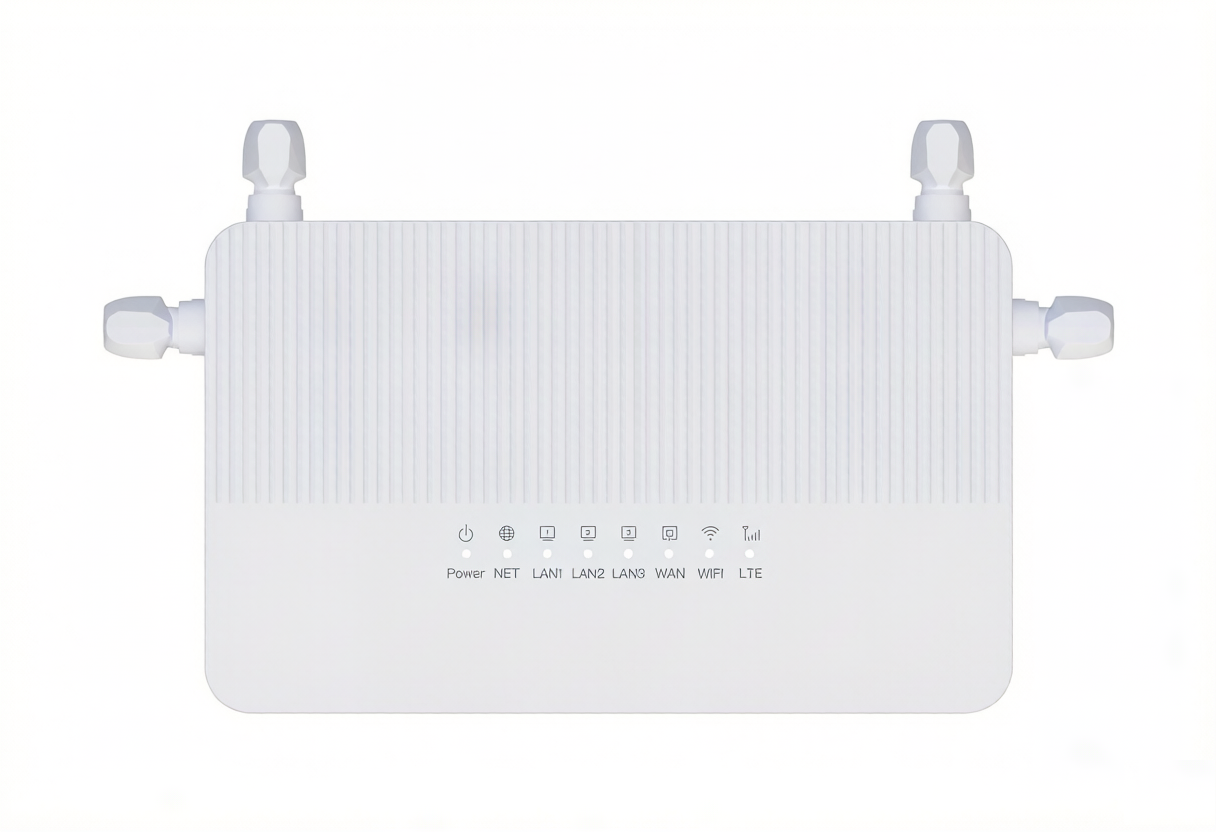

LED Indicators Power NET LAN1 LAN2 LAN3 WAN WIFI LTE
Power Supply DC 12V 1A
Product Size 180X110X35 mm (length X width X height)
Work Environment Working temperature: 0°C—40°C；Working humidity: 10—90%
WAN Connection Support DHCP, PPPoE and Static IP address three internet access models,
Wireless Function WiFi basic function, WiFi advanced function, Guest network,
Wireless Encryption WPA/WPA2, WPA2
Management Function WEB
System Maintenance Device management, Configuration management, Upgrade management, Log function, Status statistics, Restart/reset
Advanced Function Firewall, Virtual server,IPV6, UPnP
Certification Meet CE certification

AZ846 N300 4G CAT4 CPE Datasheets -20251212
